SLIDING DOORS

KMW 4+
Keller minimal windows®4+ combines minimalist design with functionality, offering triple-glazed sliding or fixed premium windows ideal for expansive glass façades. These windows bring in abundant natural light and create seamless transitions between indoor and outdoor spaces.
Our system supports large glass surfaces up to 6 meters high and 1,000 kg per sash, meeting energy-efficient standards for low-energy and passive houses.
With Uw values of ≥ 0.70 W/m²K, they deliver significant energy savings. Slim aluminum frames (26-34mm) ensure strength and sleek aesthetics. Keller minimal windows offers customizable designs, including mullion-free corners, pivot units, and disappearing sliding doors for unobstructed views.

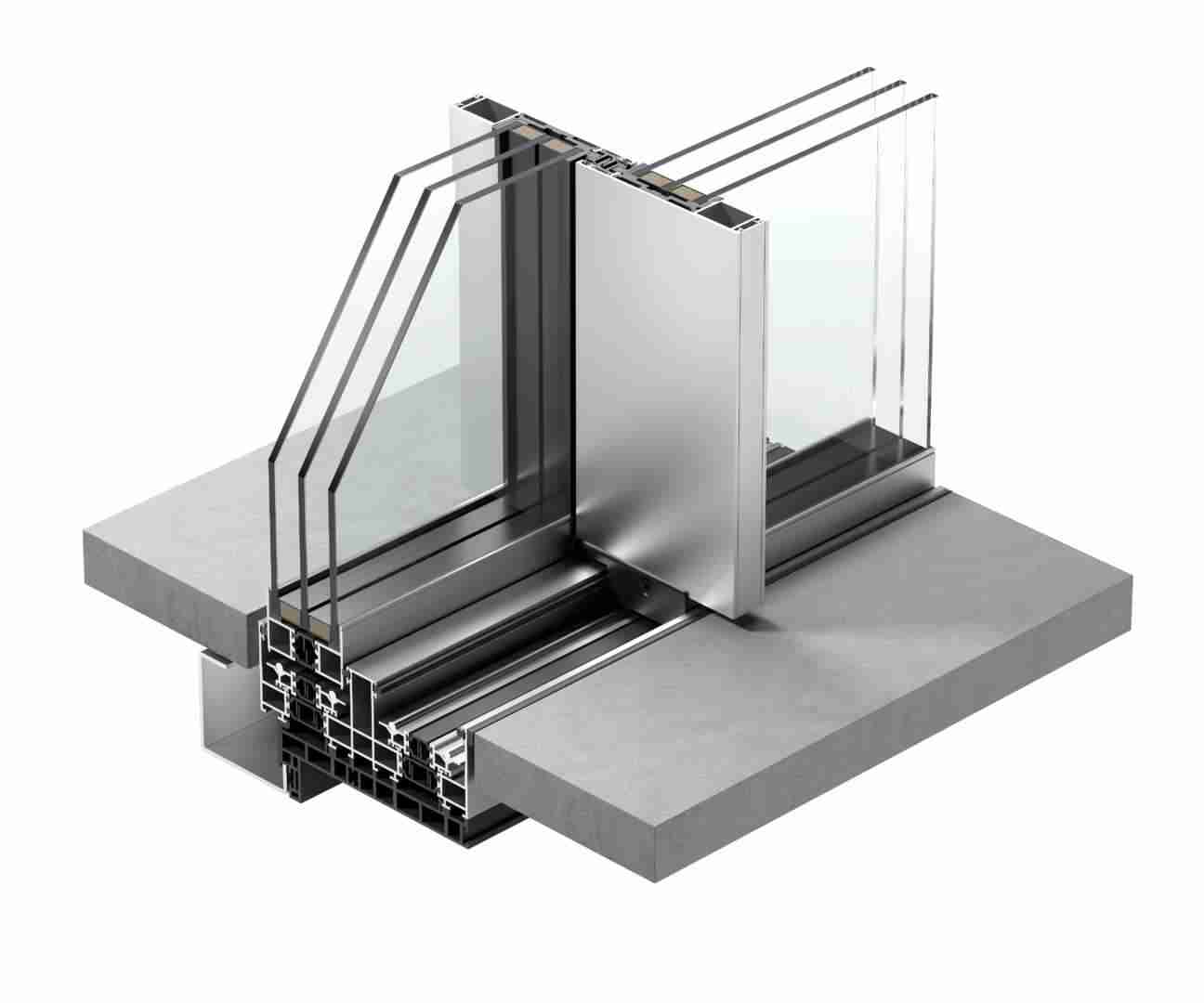

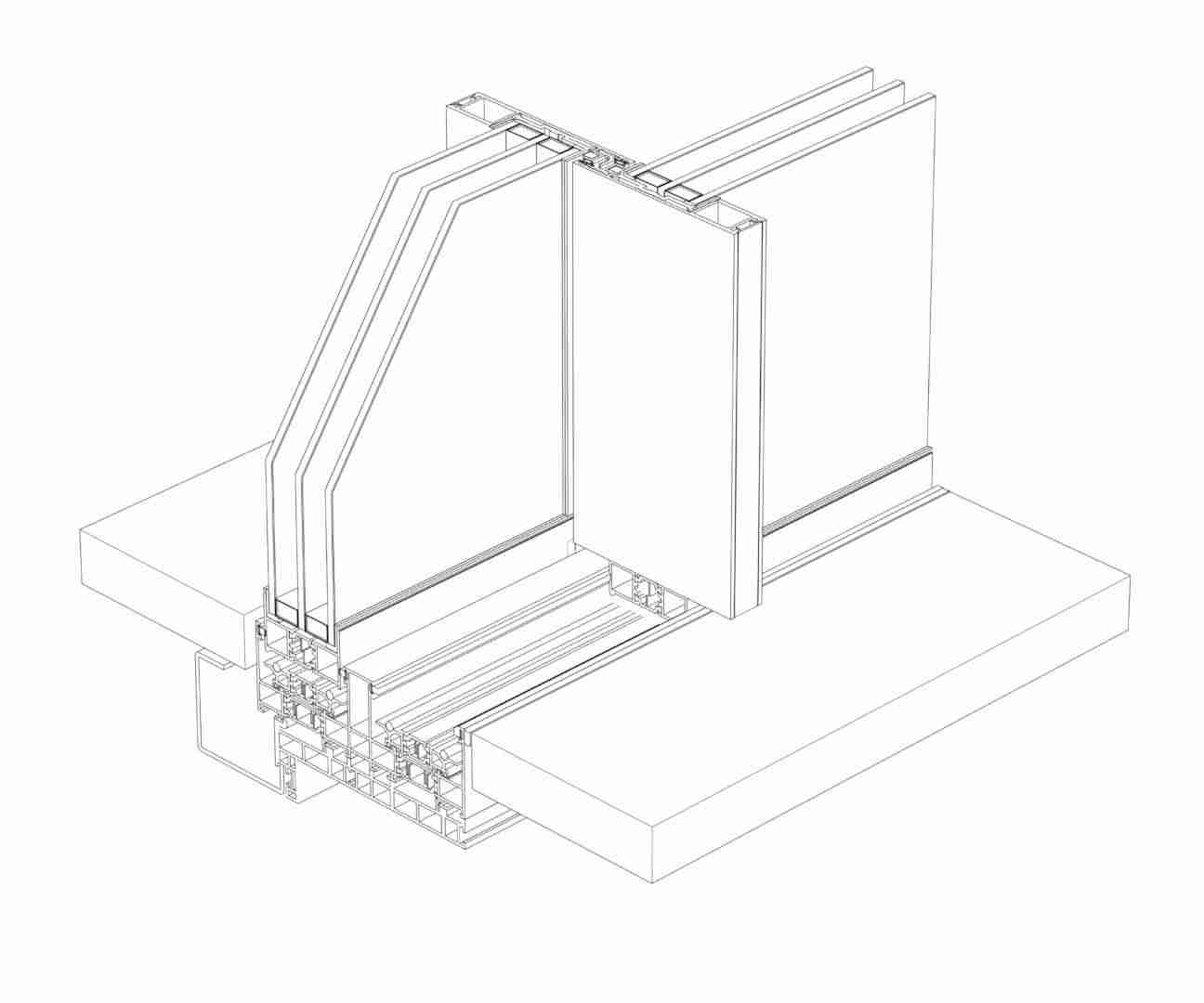

PROFILE
CONFIGURATION

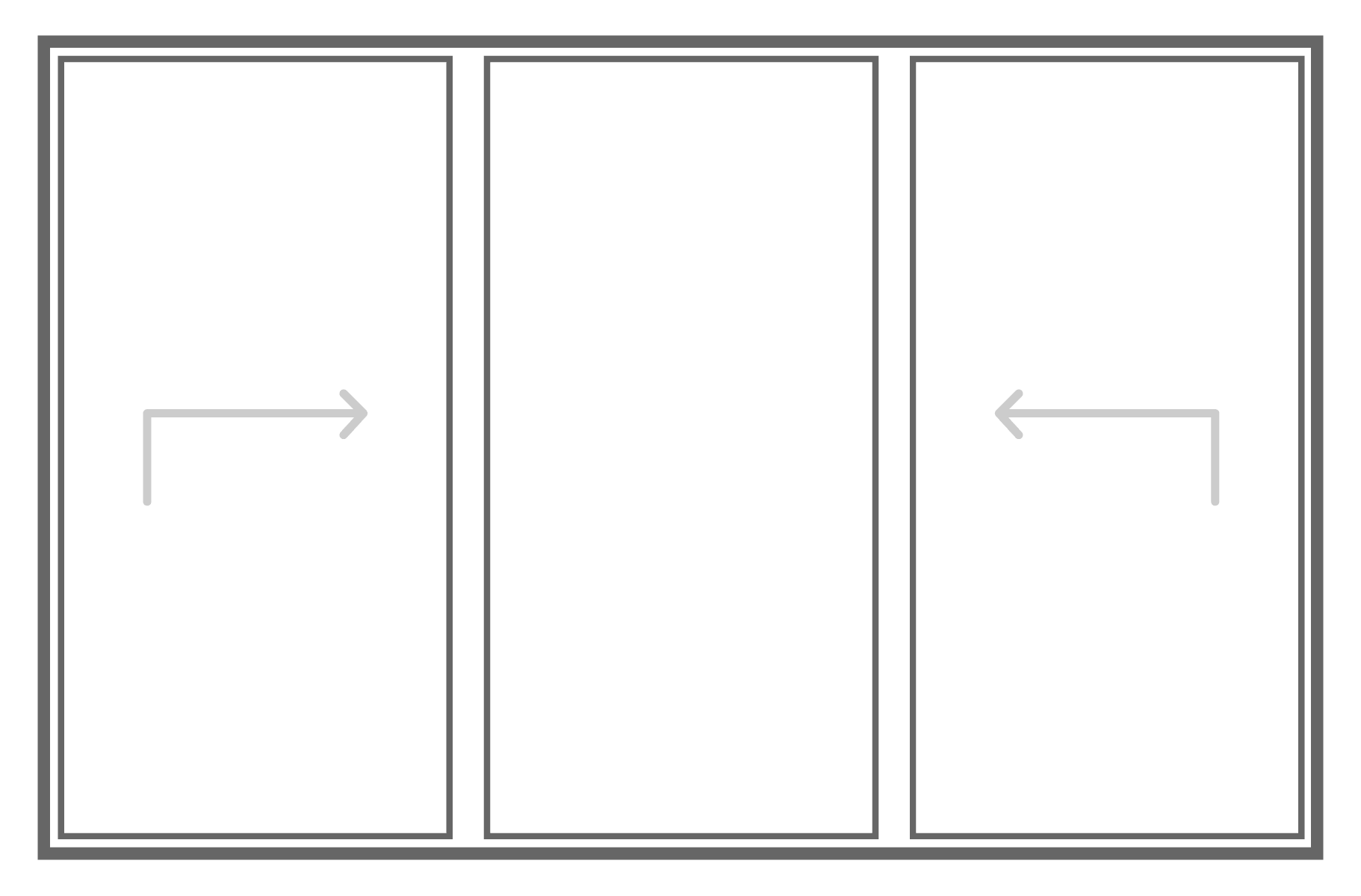

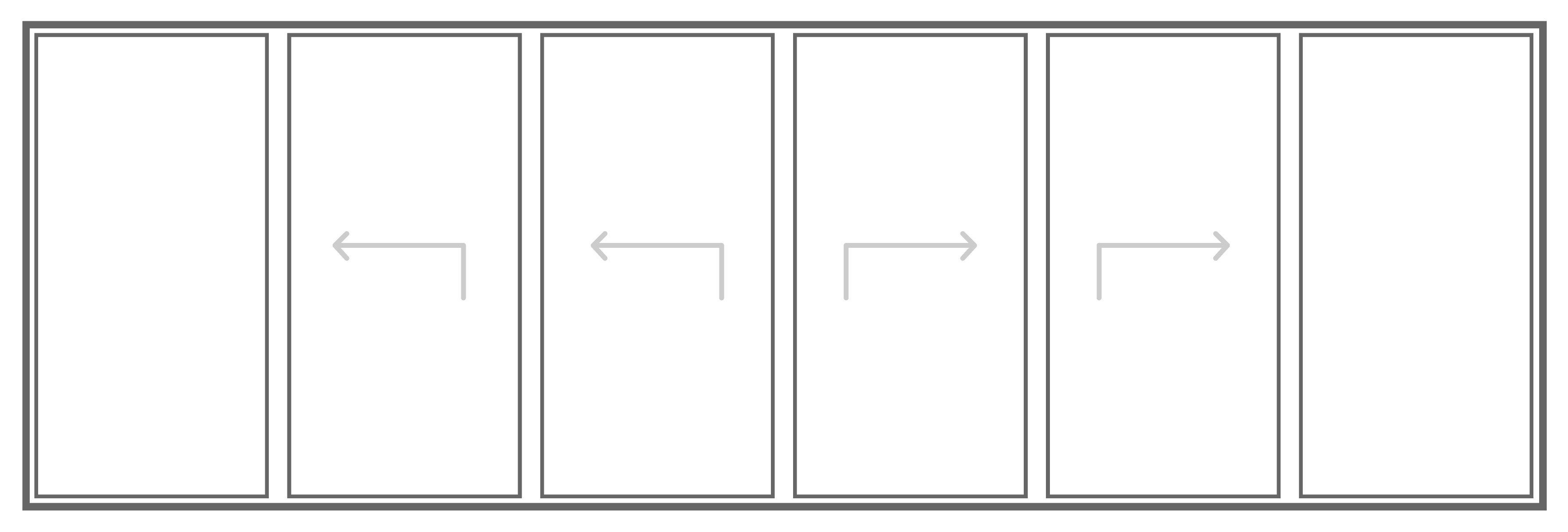

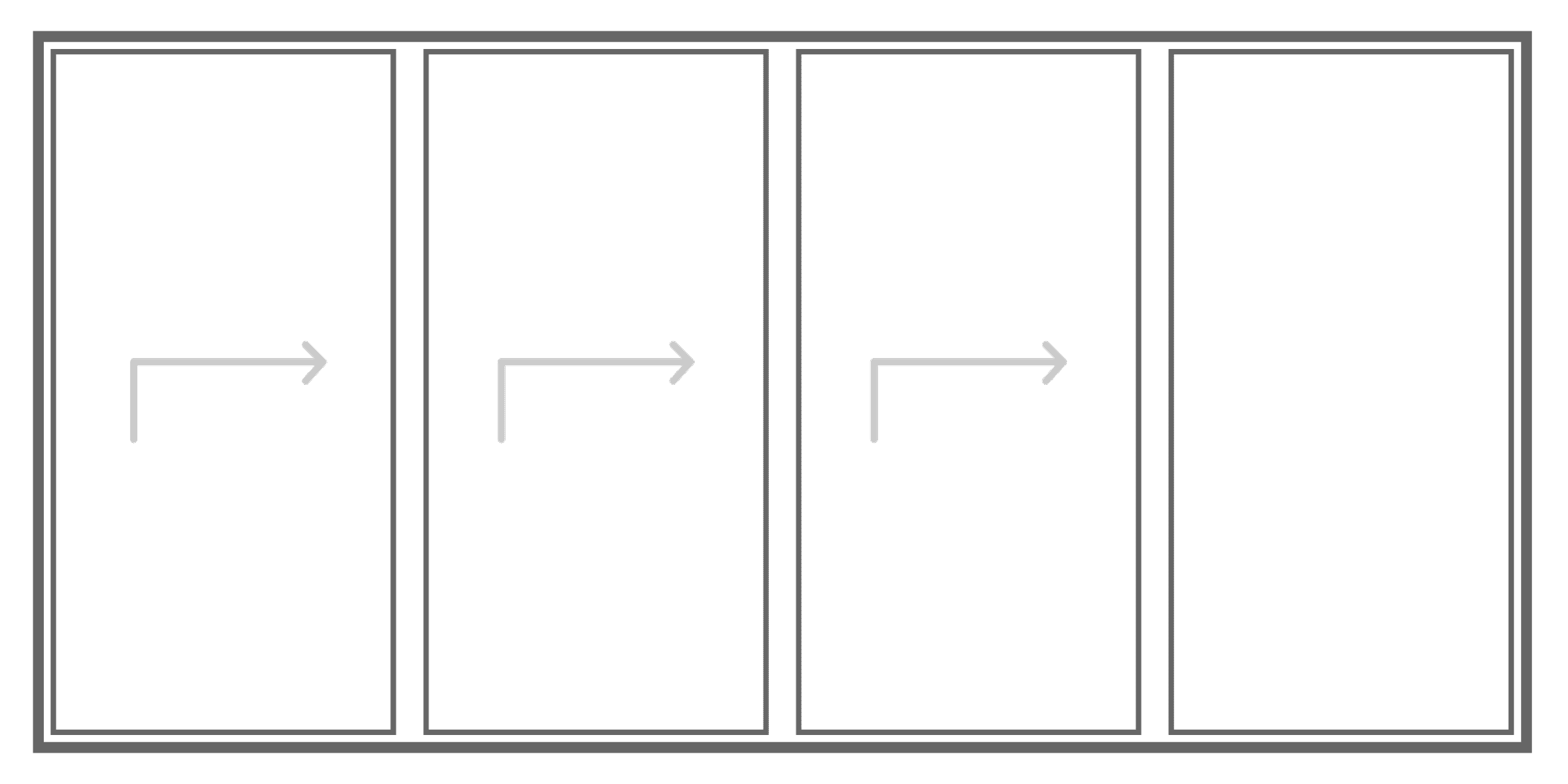

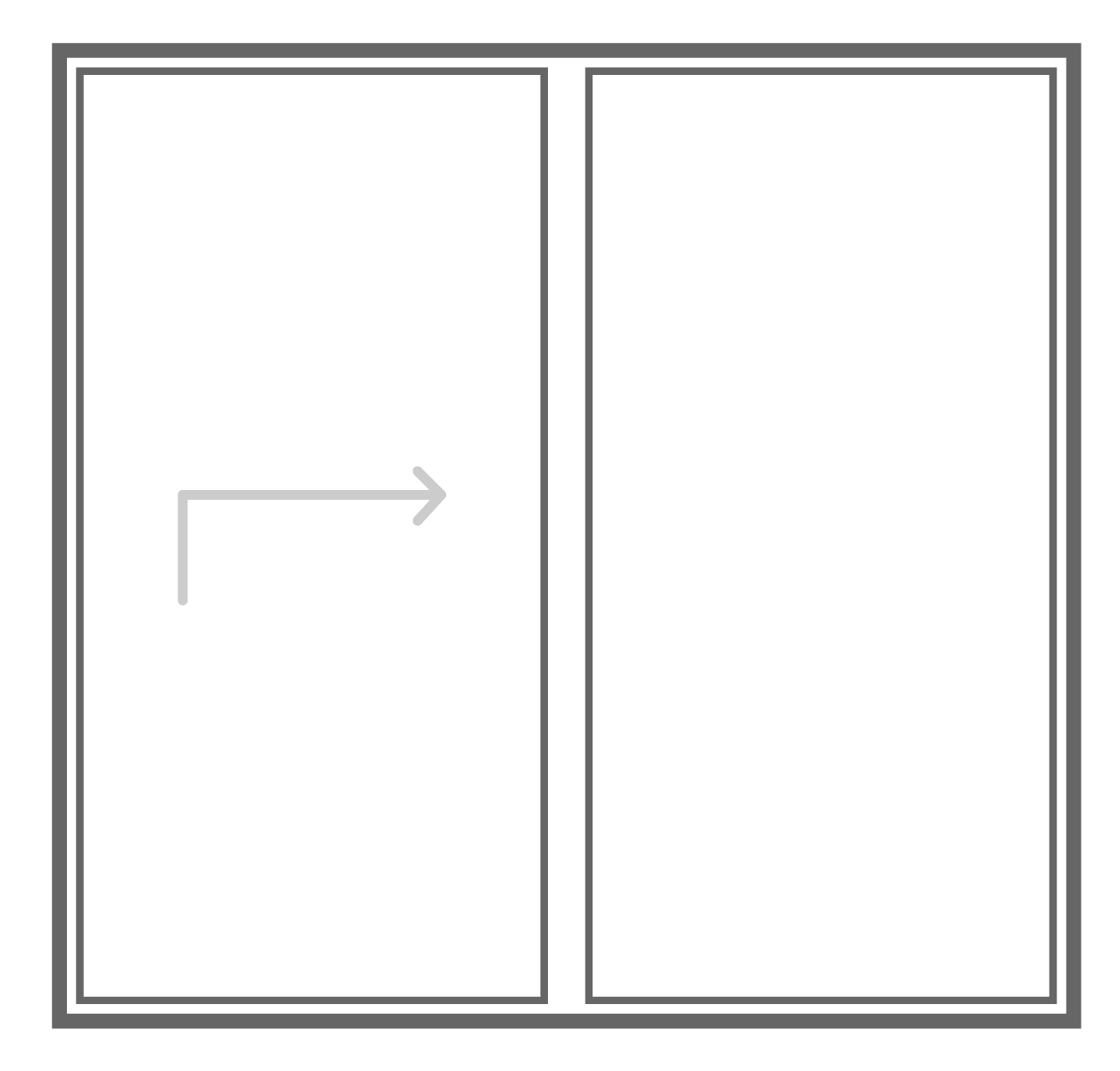

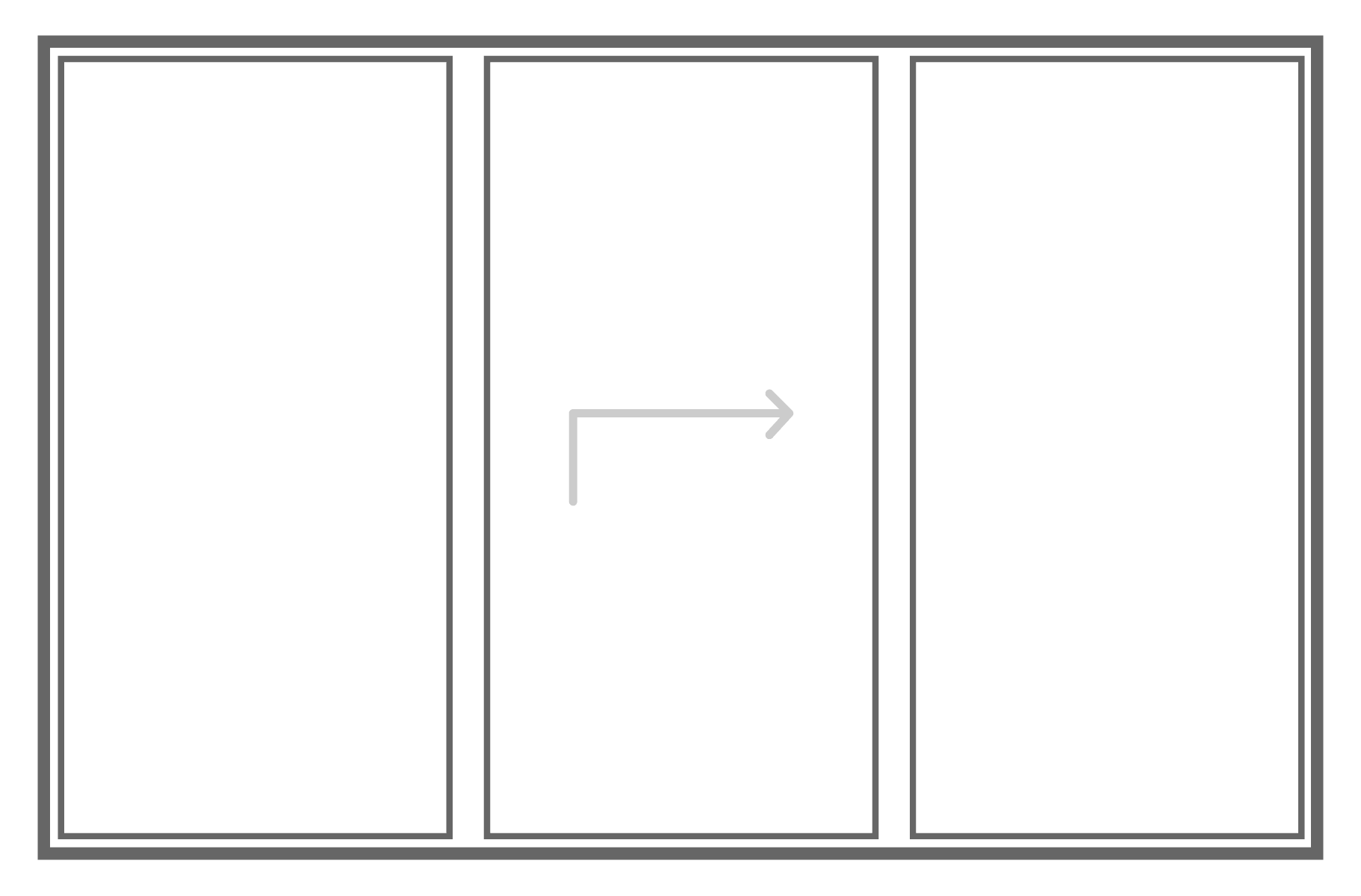

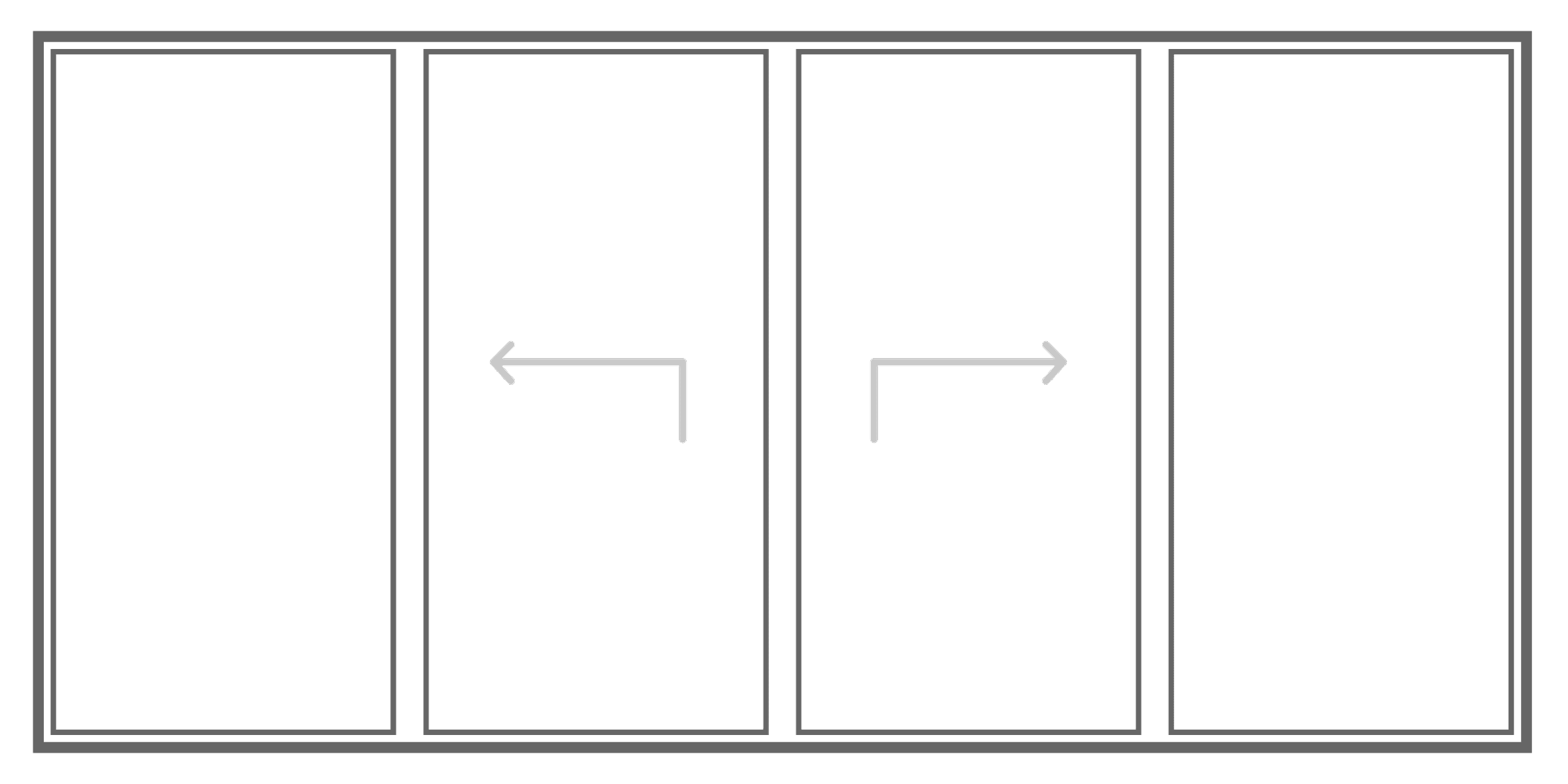

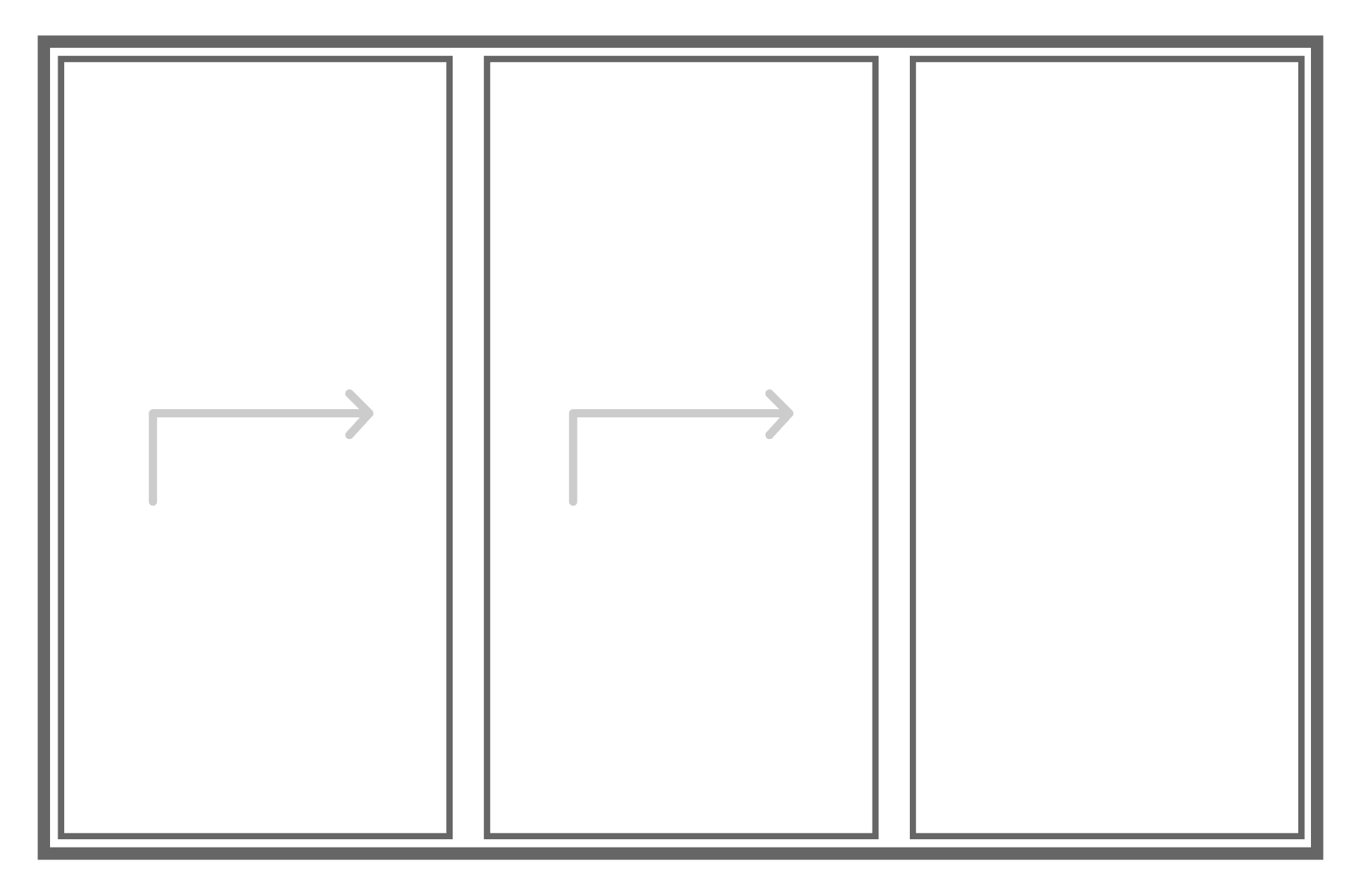

STANDARD
CONFIGURATION

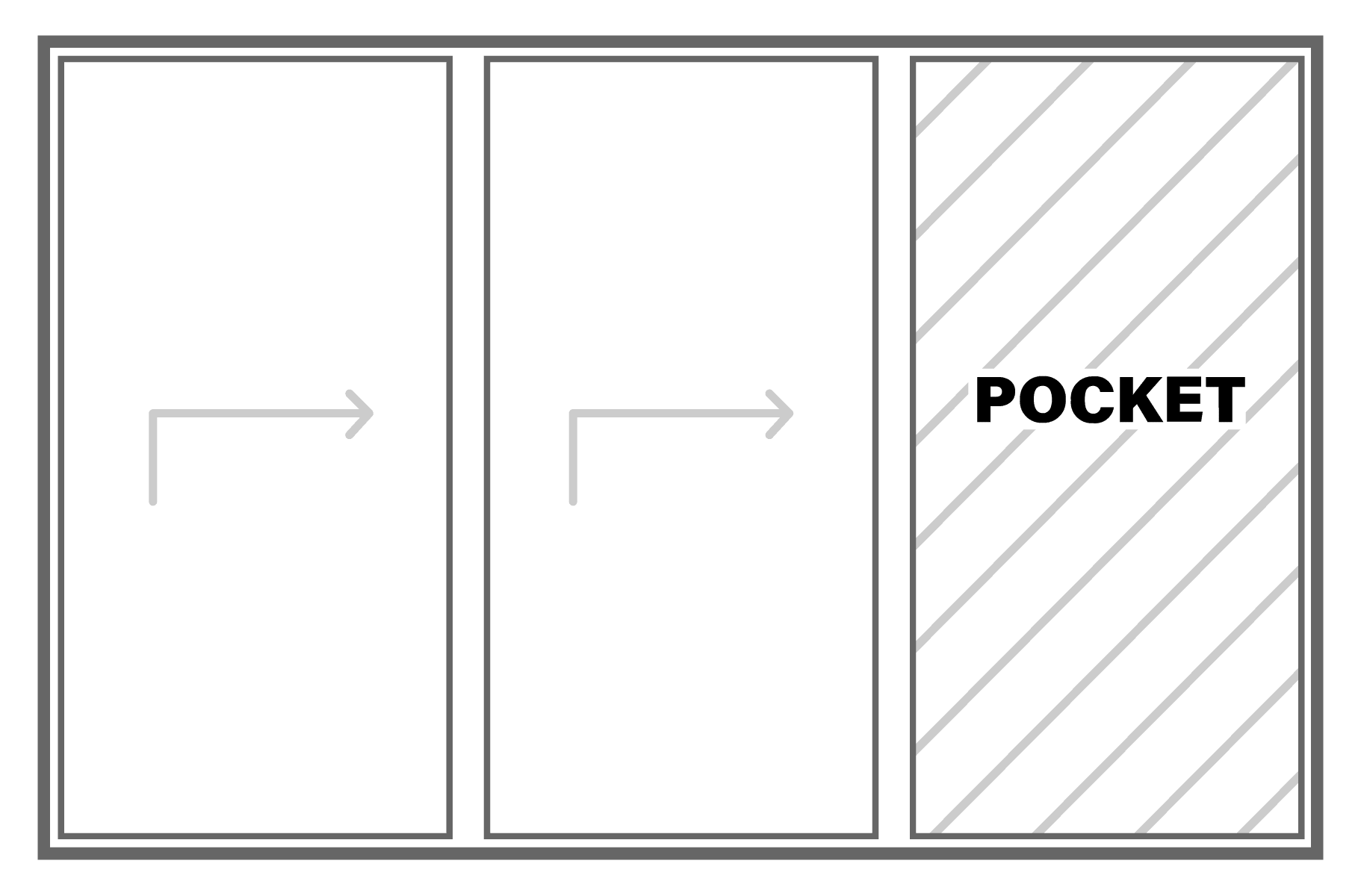

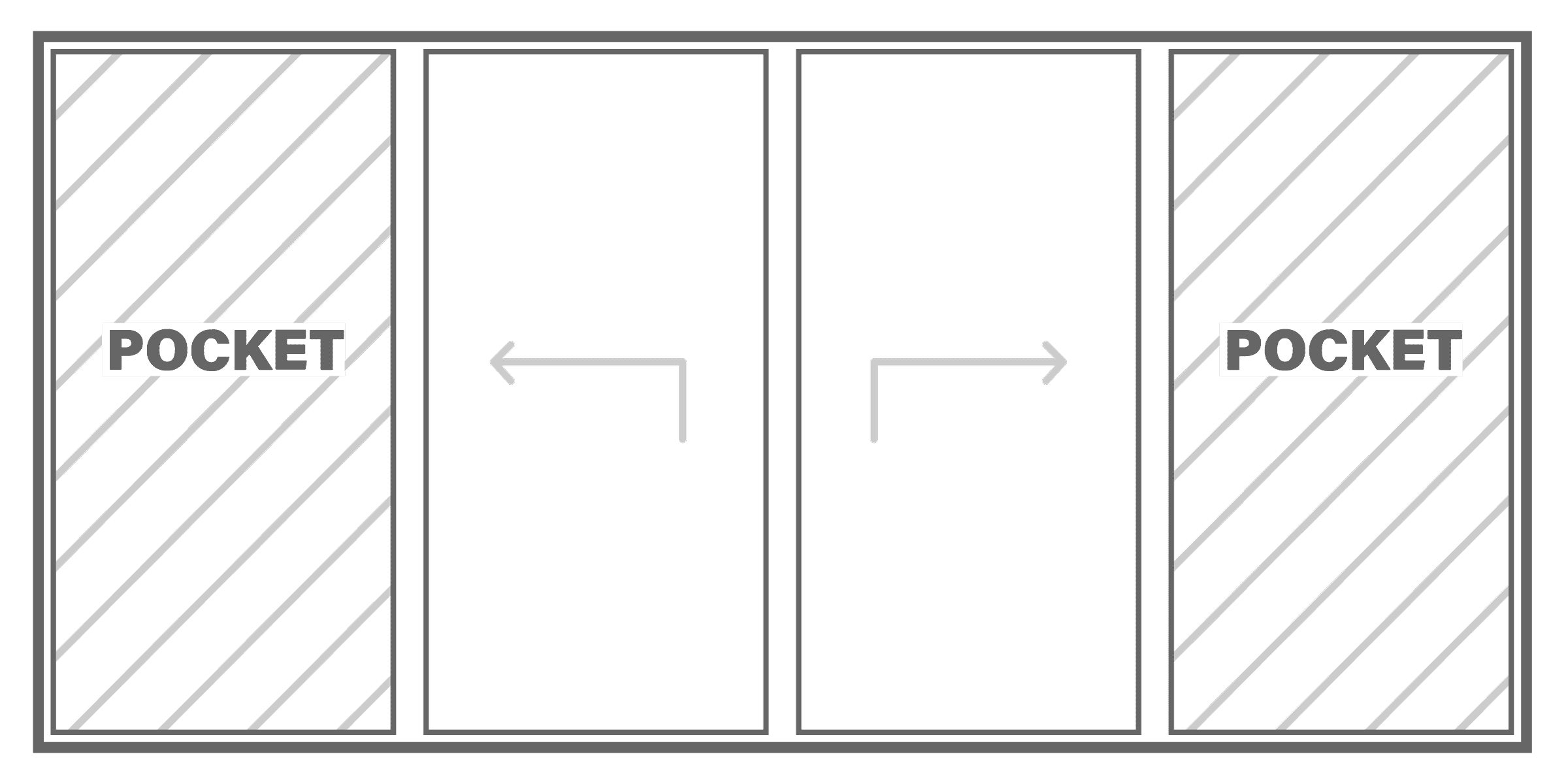

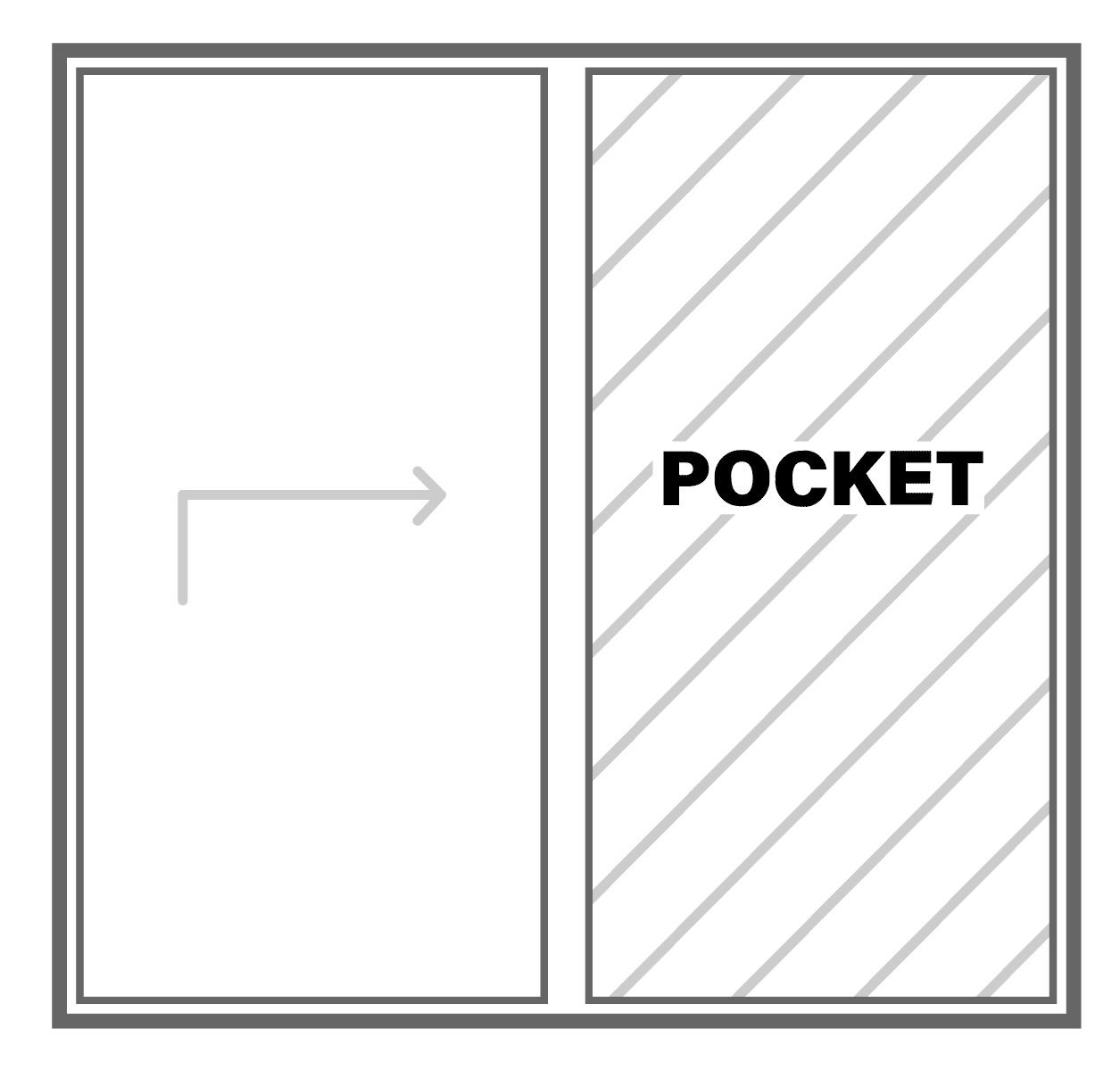

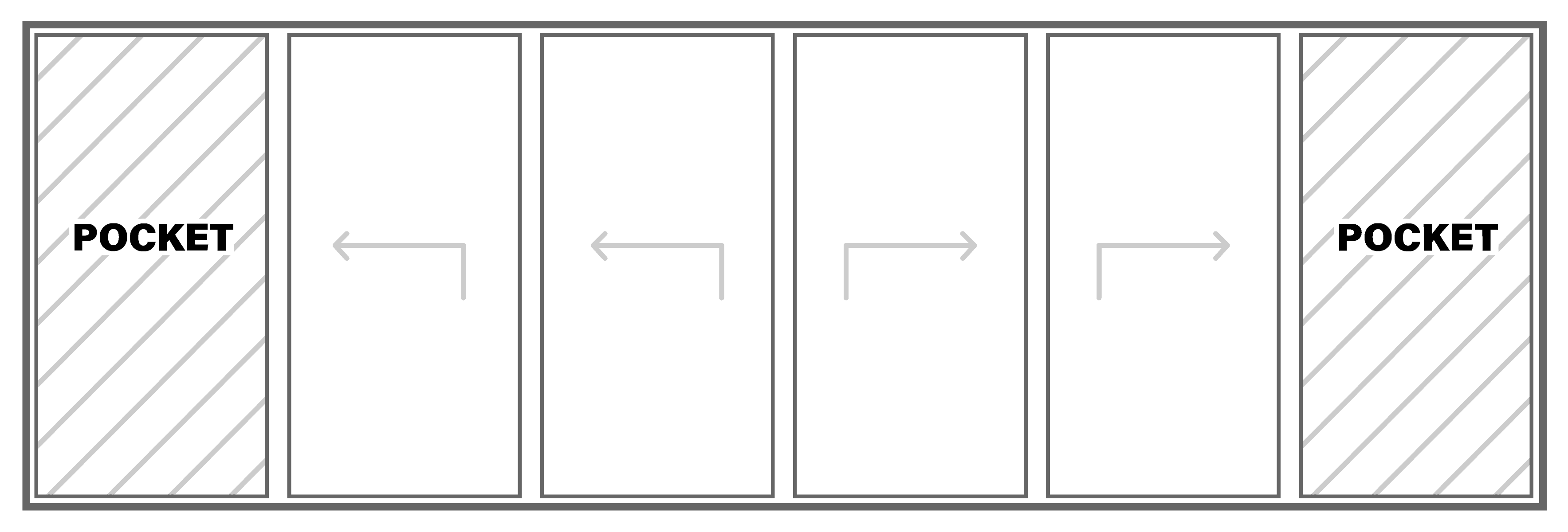

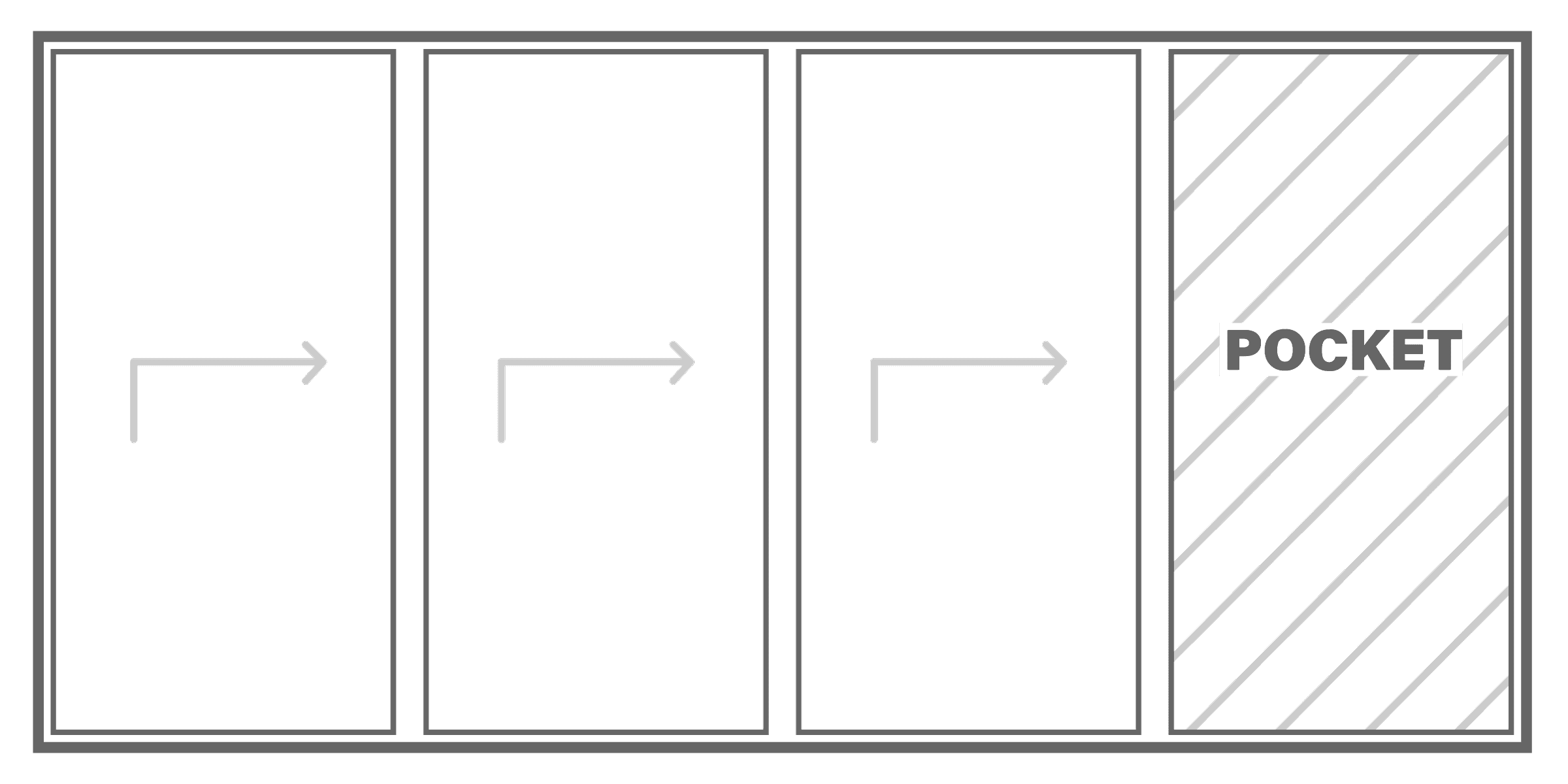

POCKET
CONFIGURATION

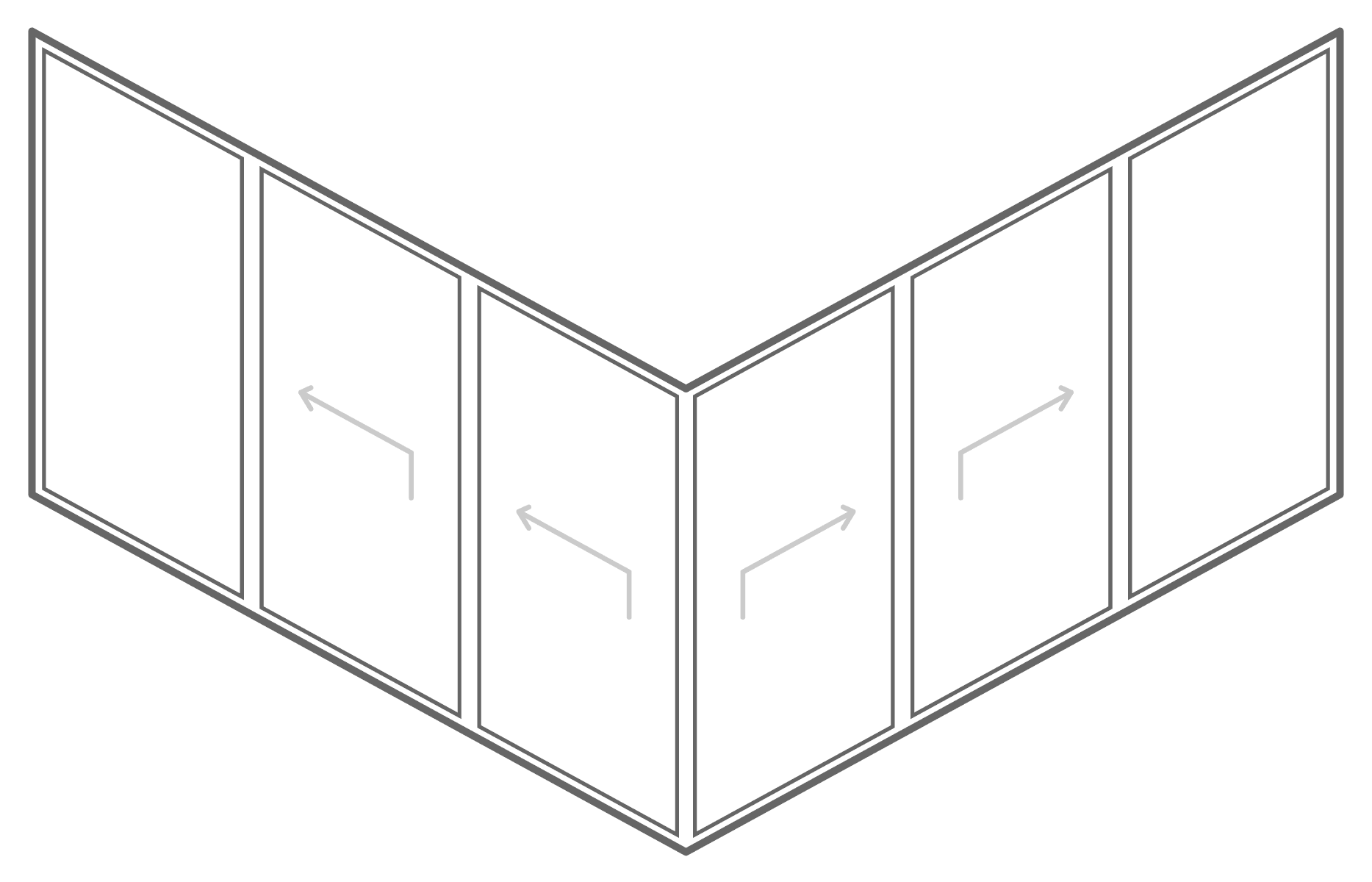

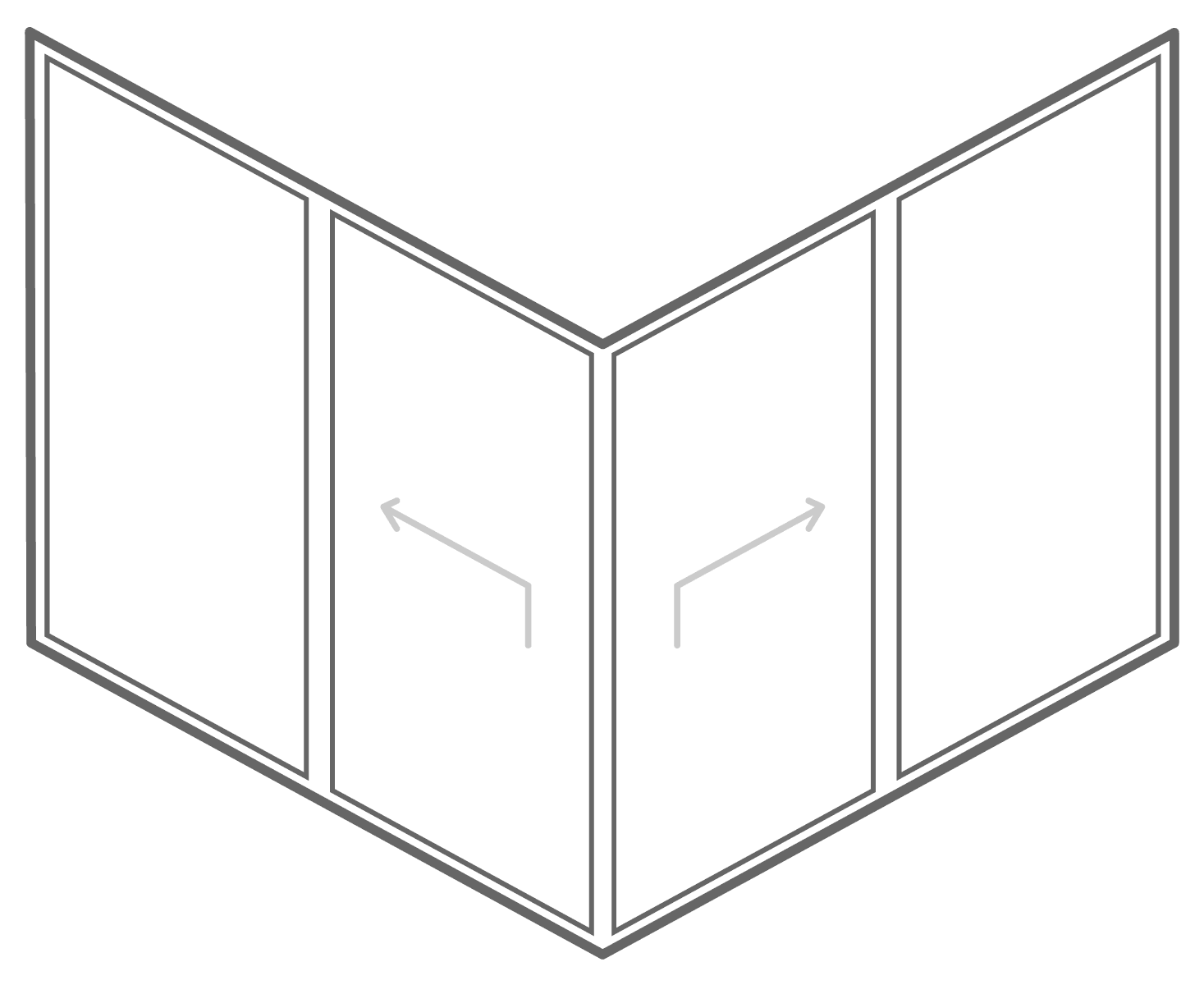

CORNER
CONFIGURATION

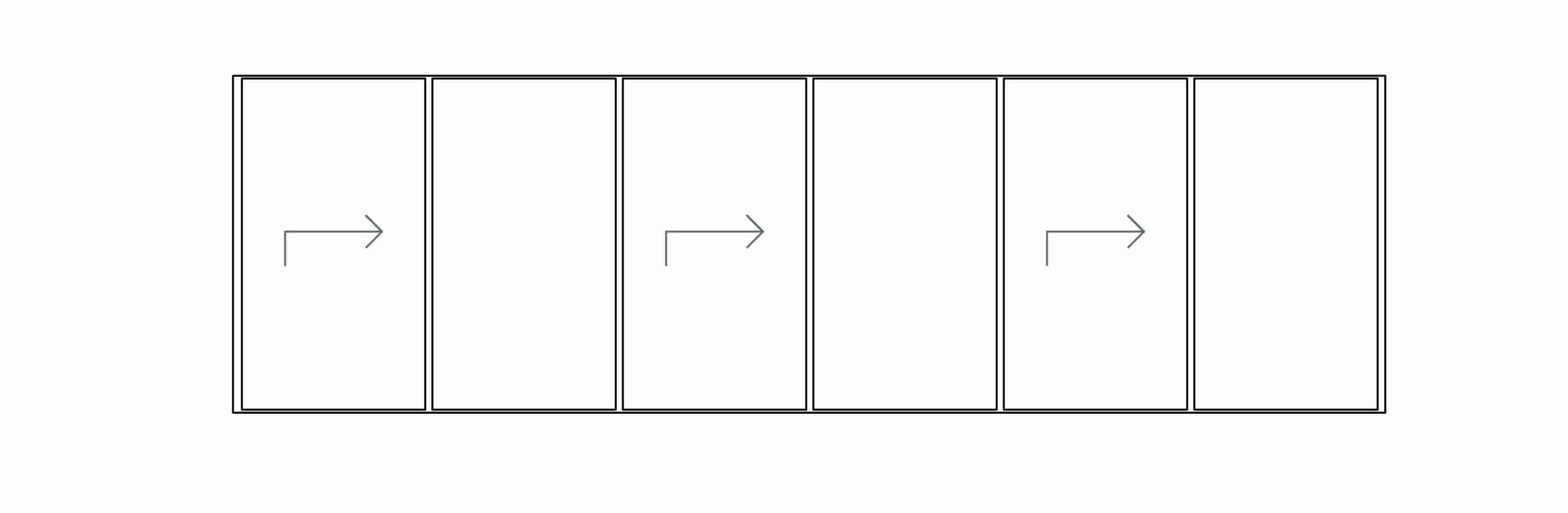

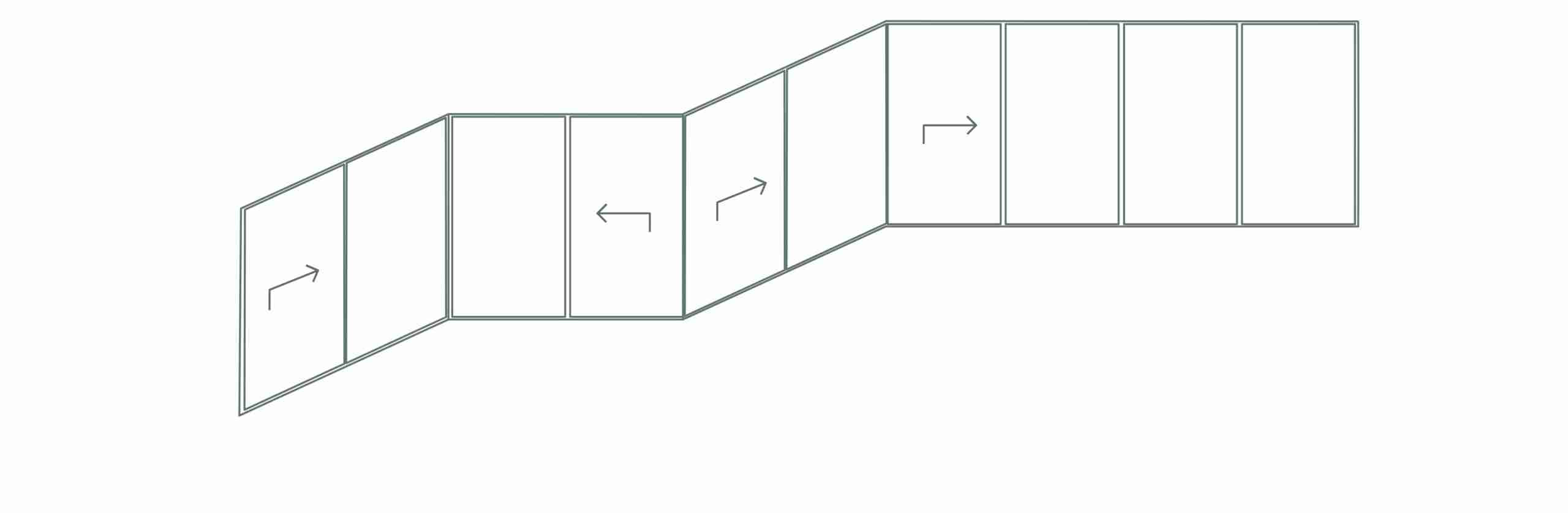

COMBINATION
LIMITATIONS

MINIMUM SIZES

MINIMUM SIZES @300Pa | 6.27 psf
MAXIMUM SIZES
MAXIMUM WEIGHT
PANEL LIMITATIONS
-

4000 mm x 6000 mm | 12 m2

1000 kg (Manual) | 2400 kg (Motorized)

PERFORMANCE TEST

AIR INFILTRATION @75Pa | 1.57 psf

WATER PENETRATION
THERMAL - DOUBLE GLASS
THERMAL - TRIPLE GLASS
DOOR PERFORMANCE

A3 | 0.4 L/s/m2 | 0.08 cfm/ft2

330 Pa | 6.89 psf

1.76-1.99 W/m2K | 0.31-0.35 Btu

1.42-1.59 W/m2K | 0.25-0.28 Btu

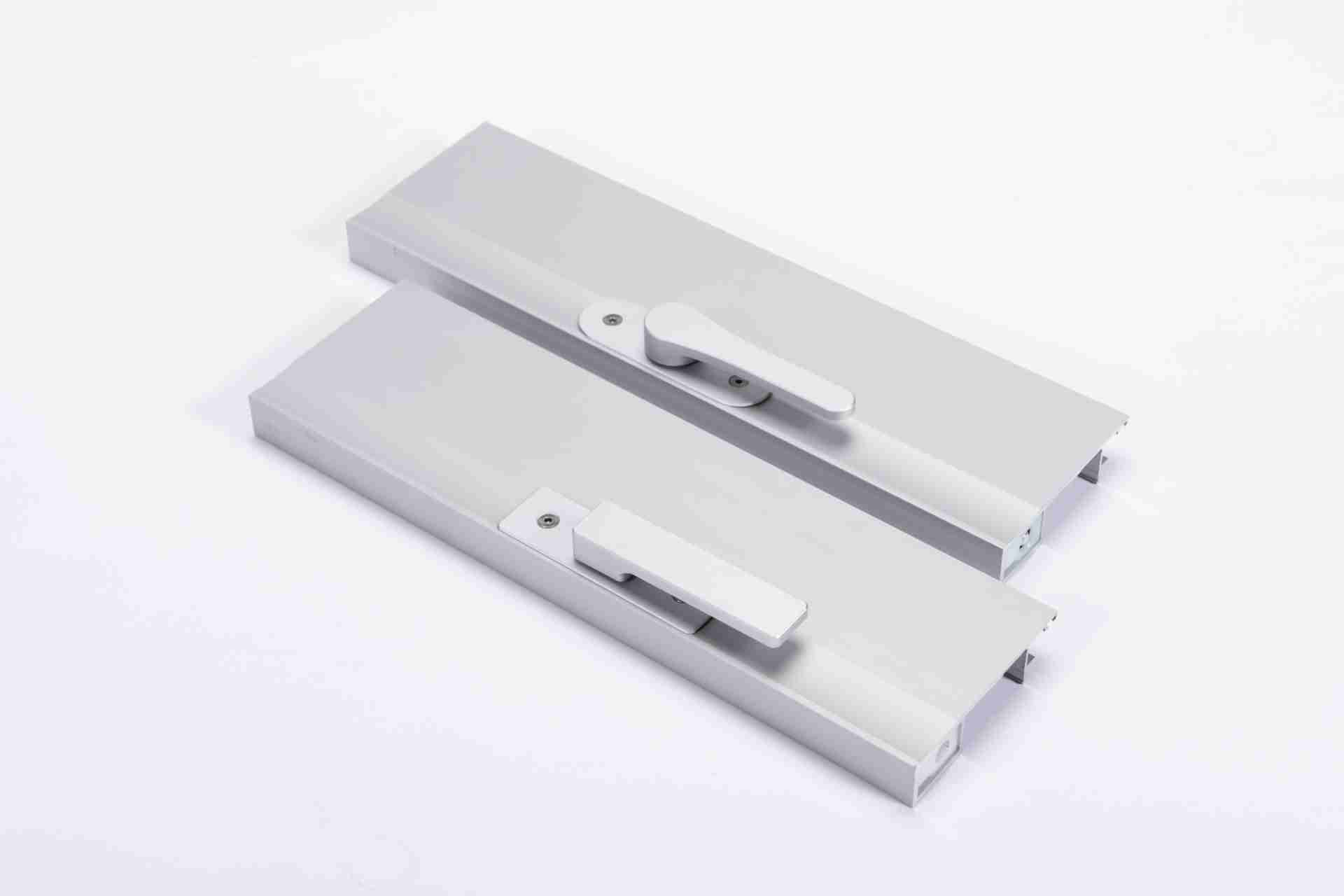

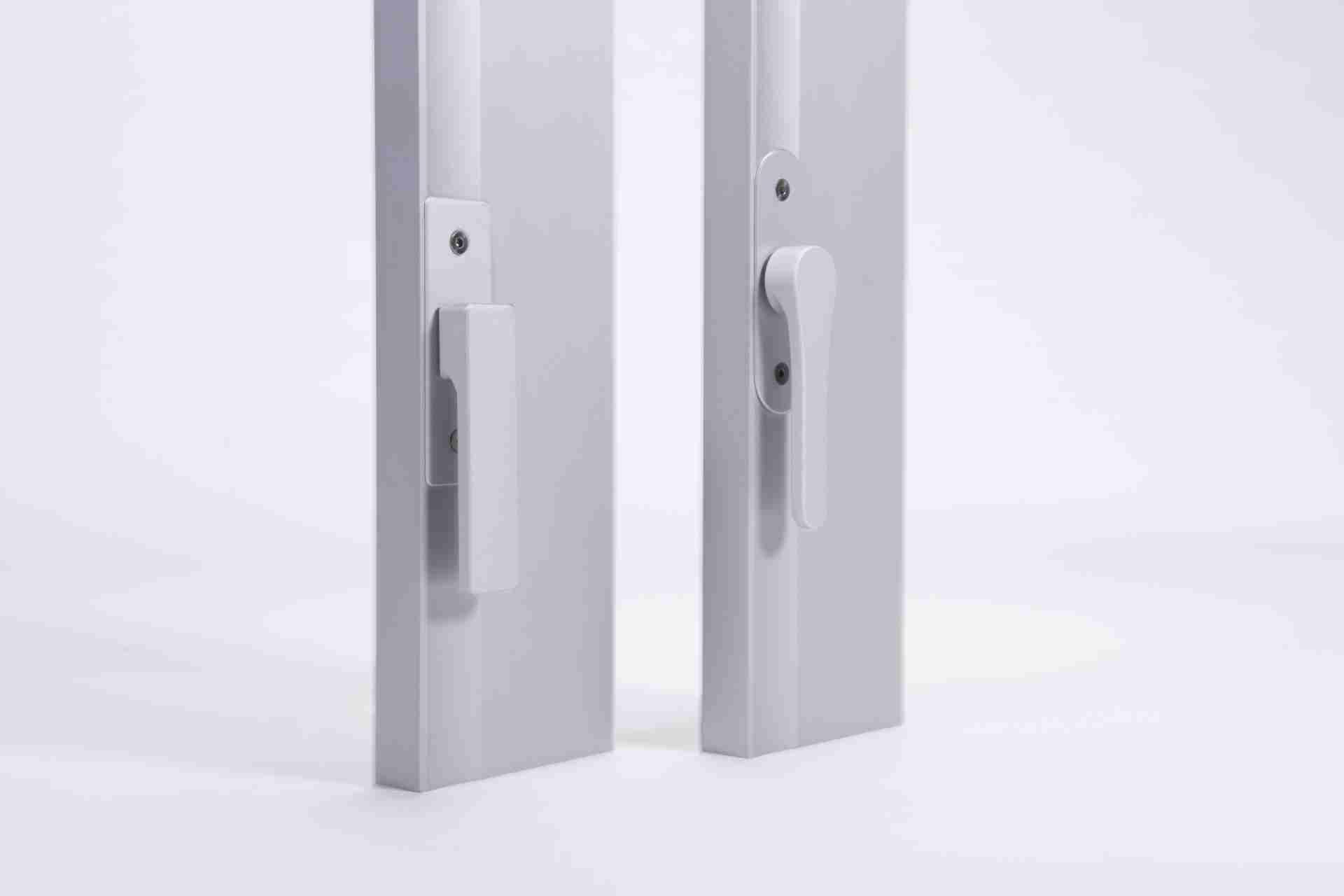

HANDLES

DETAILS

Elegant and unique, this aluminum door adds vertical drama to any entrance. A perfectly flat surface with discreetly concealed handle and elongated window.
KMW 4+

GLAZING & FINISHING OPTIONS

Elegant and unique, this aluminum door adds vertical drama to any entrance.
GLAZING & FINISHING
